The Varadis RADFET is a microelectronic chip, specially engineered to be sensitive to high energy (ionising) radiation. The RADFETs are small, robust, require no power to detect radiation, can easily be integrated into electronic systems, and are cost effective.
Varadis RADFET VT01
400nm RADFET in Six Lead SOT-23 Plastic Package
For doses between 1 cGy (1 rad) and 1 kGy (100 krad)
RADFET is a discrete p-channel MOSFET optimized for radiation sensitivity. RADFETs are sensitive to ionizing radiation: gamma rays, X-rays, and protons.
The critical region of the RADFET is its gate oxide. Through generation and trapping of radiation-induced charges in the gate oxide, radiation exposure changes the output voltage of the RADFET and this change is related to the radiation dose. The RADFET response is non-linear and a pre-recorded calibration curve is used to read the dose. The read-out is done by forcing a DC current (in the range of 10s of μA) into the device and measuring the DC voltage (in the range of 0.5 to 8 Volts).
Varadis RADFET VT02

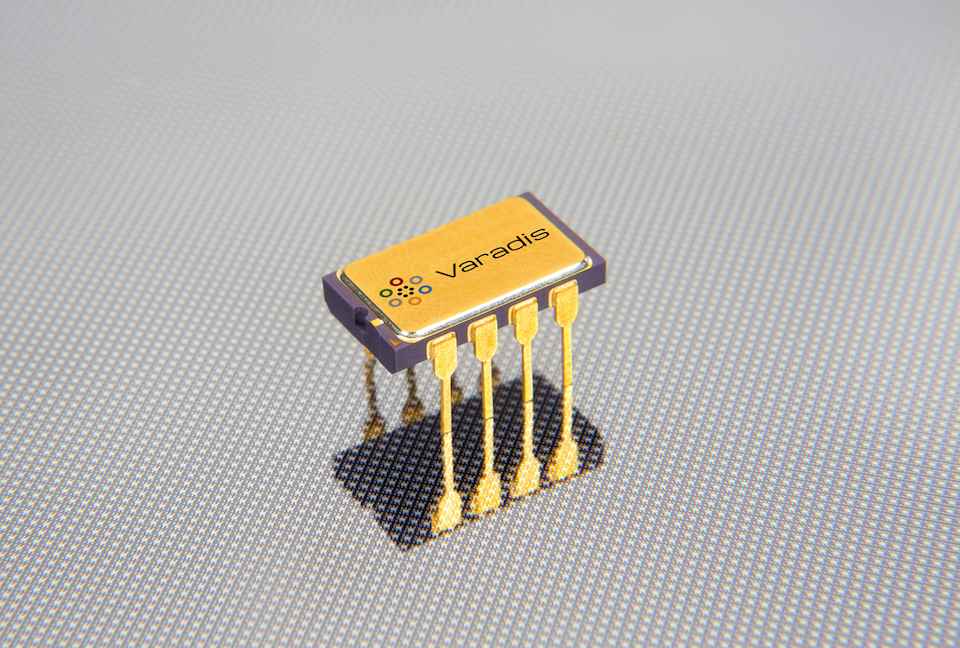

400nm RADFET in Eight Lead Ceramic Side Braze Package
For doses between 1 cGy (1 rad) and 1 kGy (100 krad)
RADFET is a discrete p-channel MOSFET optimized for radiation sensitivity. RADFETs are sensitive to ionizing radiation: gamma rays, X-rays, and protons.
The VT02 is used by organisations such as the European Space Agency and a number of other space agencies across the globe. The VT02 is hermetically sealed and slightly larger than the plastic version.
The critical region of the RADFET is its gate oxide. Through generation and trapping of radiation-induced charges in the gate oxide, radiation exposure changes the output voltage of the RADFET and this change is related to the radiation dose. The RADFET response is non-linear and a pre-recorded calibration curve is used to read the dose. The read-out is done by forcing a DC current (in the range of 10s of μA) into the device and measuring the DC voltage (in the range of 0.5 to 8 Volts).
Important Information: The VT01 & VT02 RADFETs have a large dynamic range, from 1 cGy (1 rad) to 1 kGy (100 krad). To fully understand the capabilities and limitations of these products, please review the datasheets available on this web page.
Varadis RADFET VT03
1μm RADFET in Six Lead SOT-23 Plastic Package
For doses between 3 mGy (0.3 rad) and 10 Gy (1 krad)
RADFET is a discrete p-channel MOSFET optimized for radiation sensitivity. RADFETs are sensitive to ionizing radiation: gamma rays, X-rays, and protons.
The VT03 addresses a lower dose range than either VT01 or VT02.
The critical region of the RADFET is its gate oxide. Through generation and trapping of radiation-induced charges in the gate oxide, radiation exposure changes the output voltage of the RADFET and this change is related to the radiation dose. The RADFET response is non-linear and a pre-recorded calibration curve is used to read the dose. The read-out is done by forcing a DC current (in the range of 10s of μA) into the device and measuring the DC voltage (in the range of 5 to 9 Volts).
Varadis RADFET VT04
1μm RADFET in Eight Lead Ceramic Side Braze Package
For doses between 3 mGy (0.3 rad) and 10 Gy (1 krad)
RADFET is a discrete p-channel MOSFET optimized for radiation sensitivity. RADFETs are sensitive to ionizing radiation: gamma rays, X-rays, and protons.
The VT04 addresses a lower dose range than either VT01 or VT02.
The critical region of the RADFET is its gate oxide. Through generation and trapping of radiation-induced charges in the gate oxide, radiation exposure changes the output voltage of the RADFET and this change is related to the radiation dose. The RADFET response is non-linear and a pre-recorded calibration curve is used to read the dose. The read-out is done by forcing a DC current (in the range of 10s of μA) into the device and measuring the DC voltage (in the range of 5 to 9 Volts).
Important Information: To fully understand the capabilities and limitations of these products, please review the datasheets available on this web page.
Varadis RADFET VT05
100nm RADFET in Six Lead SOT-23 Plastic Package
For doses between 10 Gy (1 krad) and 10 kGy (1 Mrad)
RADFET is a discrete p-channel MOSFET optimized for radiation sensitivity. RADFETs are sensitive to ionizing radiation: gamma rays, X-rays, and protons.
The VT05 addresses a higher dose range than either VT01 or VT02.
The critical region of the RADFET is its gate oxide. Through generation and trapping of radiation-induced charges in the gate oxide, radiation exposure changes the output voltage of the RADFET and this change is related to the radiation dose. The RADFET response is non-linear and a pre-recorded calibration curve is used to read the dose. The read-out is done by forcing a DC current (in the range of 10s of μA) into the device and measuring the DC voltage (in the range of 2.1 to 3.5 Volts).
Varadis RADFET VT06
100nm RADFET in Eight Lead Ceramic Side Braze Package
For doses between 10 Gy (1 krad) and 10 kGy (1 Mrad)
RADFET is a discrete p-channel MOSFET optimized for radiation sensitivity. RADFETs are sensitive to ionizing radiation: gamma rays, X-rays, and protons.
The VT05 addresses a higher dose range than either VT01 or VT02.
The critical region of the RADFET is its gate oxide. Through generation and trapping of radiation-induced charges in the gate oxide, radiation exposure changes the output voltage of the RADFET and this change is related to the radiation dose. The RADFET response is non-linear and a pre-recorded calibration curve is used to read the dose. The read-out is done by forcing a DC current (in the range of 10s of μA) into the device and measuring the DC voltage (in the range of 2.1 to 3.5 Volts).
Important Information: The VT05 & VT06 RADFETs have a large dynamic range, from 10 Gy (1 krad) to 10 kGy (1 Mrad). To fully understand the capabilities and limitations of these products, please review the datasheets available on this web page.
Varadis RADFET Module RM-VT01-A
For doses between 1 cGy (1 rad) and 1 kGy (100 krad)
Using 400nm RADFET in Six Lead SOT-23 Plastic Package
The RM-VT01-A RADFET Read-out Module is aimed at providing an optimized
RADFET read-out and cutting customers’ development time and cost.
The RM-VT01-A contains VT01 RADFET and key circuitry for its readout. The module outputs a buffered analog voltage (RADFET threshold voltage), which is related to the accumulated radiation dose of the RADFET.
Due to its small size, RM-VT01-A can easily be integrated into customer’s system by soldering directly onto the PCB or via a standard throughhole
header connector.
RM-VT01-A is specially designed for and optimized around Varadis VT01
RADFET, with current source individually adjusted for each part to minimize RADFET threshold voltage drift due to temperature.
The threshold voltage of the RADFET is buffered for easier integration with
standard analog to digital converters, significantly simplifying customer’s
electronics design. Both Read-out and Irradiation (sense) modes of RADFET operation are supported. The user can easily select the desired mode by TTL logic level control signals.

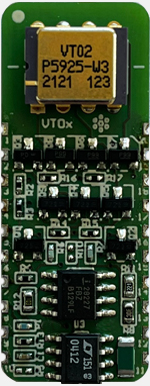

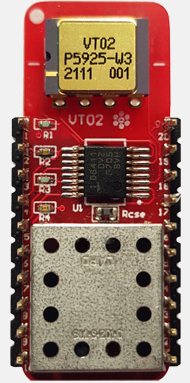

Varadis RADFET Module RM-VT02-A
For doses between 1 cGy (1 rad) and 1 kGy (100 krad)
Using 400nm RADFET in Eight Lead Ceramic Side Braze Package
The RM-VT02-A RADFET Read-out Module is aimed at providing an optimized
RADFET read-out and cutting customers’ development time and cost.
The RM-VT02-A contains VT01 RADFET and key circuitry for its readout. The module outputs a buffered analog voltage (RADFET threshold voltage), which is related to accumulated radiation dose of the RADFET.
Due to its small size, RM-VT02-A can easily be integrated into customer’s system by soldering directly onto the PCB or via a standard throughhole
header connector.
RM-VT02-A is specially designed for and optimized around Varadis VT02
RADFET, with current source individually adjusted for each part to minimize RADFET threshold voltage drift due to temperature.
The threshold voltage of the RADFET is buffered for easier integration with
standard analog to digital converters, significantly simplifying customer’s
electronics design. Both Read-out and Irradiation (sense) modes of RADFET operation are supported. The user can easily select the desired mode by TTL logic level control signals.
Varadis RADFET Module RM-VT03-A
Using 1μm RADFET in Six Lead SOT-23 Plastic Package
For doses between 3 mGy (0.3 rad) and 10 Gy (1 krad)
The RM-VT03-A RADFET Read-out Module is aimed at providing an optimized
RADFET read-out and cutting customers’ development time and cost.
The RM-VT03-A contains VT03 RADFET and key circuitry for its readout. The module outputs a buffered analog voltage (RADFET threshold voltage), which is related to the accumulated radiation dose of the RADFET.
Due to its small size, RM-VT03-A can easily be integrated into a customer’s system by soldering directly onto the PCB or via a standard through-hole
header connector.
RM-VT03-A is specially designed for and optimized around Varadis VT03
RADFET, with current source individually adjusted for each part to minimize RADFET threshold voltage drift due to temperature.
The threshold voltage of the RADFET is buffered for easier integration with
standard analog to digital converters, significantly simplifying customer’s
electronics design. Both Read-out and Irradiation (sense) modes of RADFET operation are supported. The user can easily select the desired mode by TTL logic level control signals.

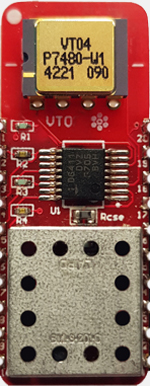

Varadis RADFET Module RM-VT04-A
1μm RADFET in Eight Lead Ceramic Side Braze Package
For doses between 3 mGy (0.3 rad) and 10 Gy (1 krad)
The RM-VT04-A RADFET Read-out Module is aimed at providing an optimized
RADFET read-out and cutting customers’ development time and cost.
The RM-VT04-A contains VT04 RADFET and key circuitry for its readout. The module outputs a buffered analog voltage (RADFET threshold voltage), which is related to accumulated radiation dose of the RADFET.
Due to its small size, RM-VT04-A can easily be integrated into customer’s system by soldering directly onto the PCB or via a standard throughhole
header connector.
RM-VT04-A is specially designed for and optimized around Varadis VT04
RADFET, with current source individually adjusted for each part to minimize RADFET threshold voltage drift due to temperature.
The threshold voltage of the RADFET is buffered for easier integration with
standard analog to digital converters, significantly simplifying customer’s
electronics design. Both Read-out and Irradiation (sense) modes of RADFET operation are supported. The user can easily select the desired mode by TTL logic level control signals.
RADFET Reader PRO
For measuring the output voltage of RADFET
The RADFET Reader PRO is a hand-held, battery-operated instrument designed for measuring the output voltage of Varadis RADFETs.
Built on a novel technology currently used in space applications, the RADFET Reader PRO offers the convenience and cost benefits of passive systems but with the added value of active dosimetry and the functionality of more expensive, bulkier devices.
Compatible with the following Varadis products:
The Varadis 400nm RADFET
The Varadis 100nm RADFET
The Varadis 1μm RADFET

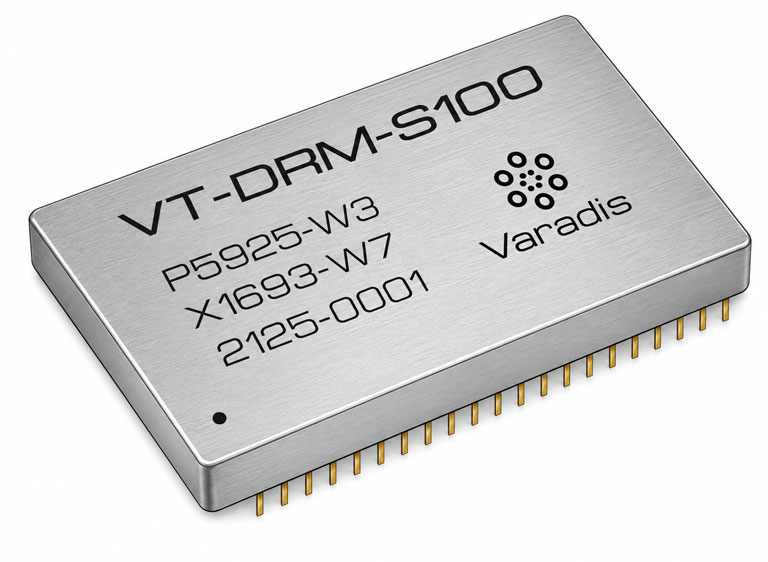

Additional RADFET Products

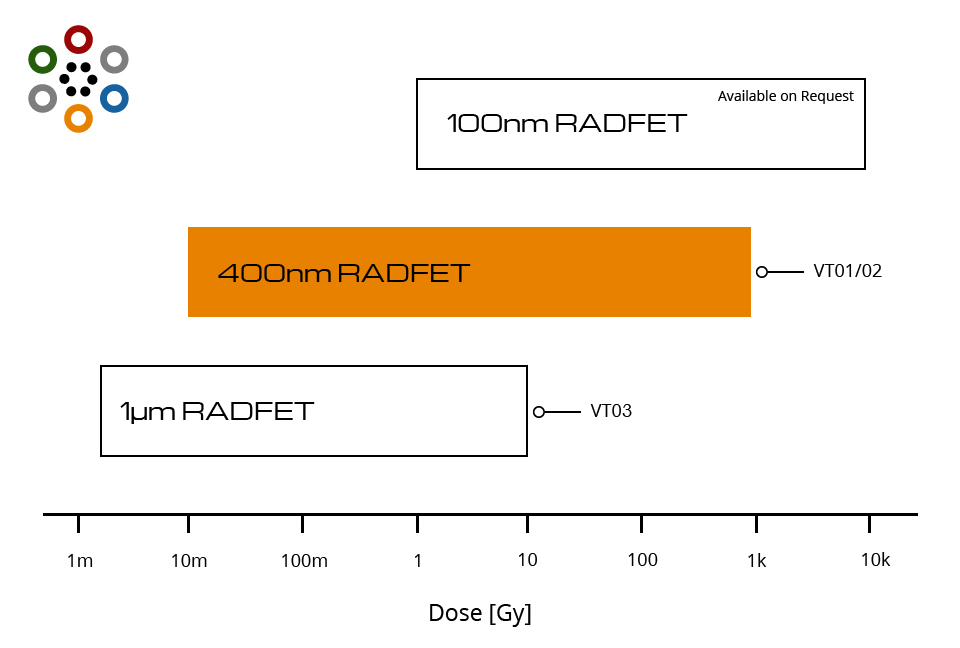

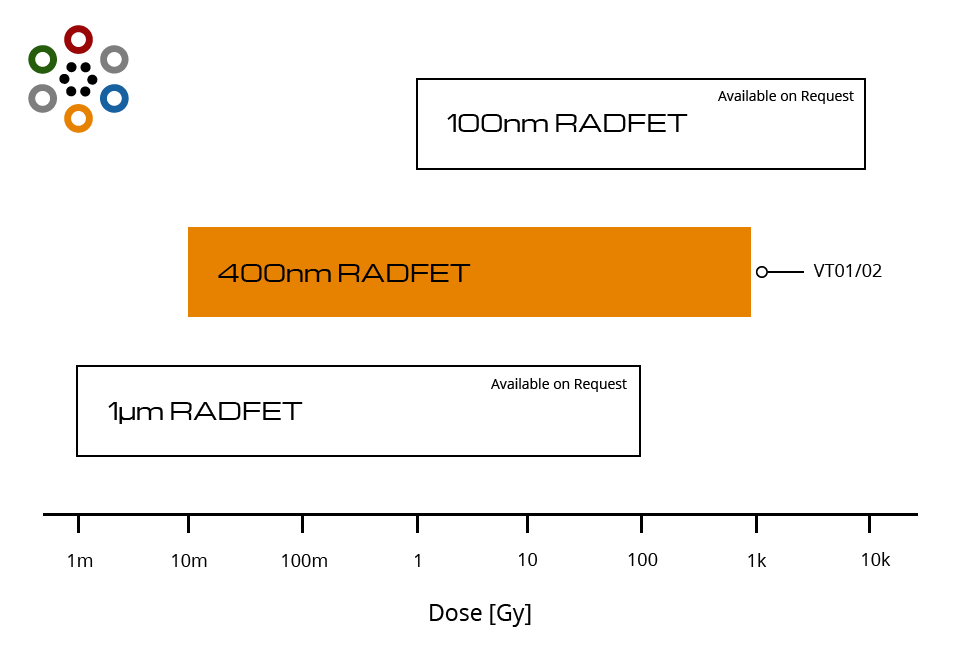

In addition to the VT01 and VT02 Varadis 400nm and VT03 Varadis 1μm RADFETs, we offer a Varadis 100nm RADFET suitable for the highest doses, up to 10kGy and even beyond.
The exact dose ranges will depend on the customer’s application requirements and the design of readout circuitry.
Please contact us for more information on these products.
